Every part in a railway system must work well. This keeps the system secure and efficient. Railway casting parts are very important. They give support, link points, and conduct signals. Their top quality influences exactly how secure the train network is. When you buy these parts for South Africa, South America, or Russia, you have to find great producers. To be effective, you require to recognize the local technological policies. Here are 5 essential top quality standards you need to constantly follow.
1. Material Make-up & Mechanical Features: The Structure of Quality
The efficiency of cast iron relies on its specific chemical composition and casting process, and must meet the global or regional requirements of the target audience. A trusted train casting parts manufacturer will certainly offer full product traceability.
1.1 Structure Criteria: Have to follow criteria such as International Standards (ISO), European Standards (EN), Russian GOST requirements, or those typically made use of in South America like IRAM (Argentina) and ABNT NBR (Brazil). The content of unsafe aspects like phosphorus and sulfur should be strictly managed.
1.2 Mechanical Properties: Focus on tensile toughness, yield stamina, firmness, and prolongation. For ductile iron, refer to standards such as ISO 1083, EN 1563, or GOST 28394. Purchase ought to require providers to offer product certificates and mechanical test reports that follow the target market’s requirements.

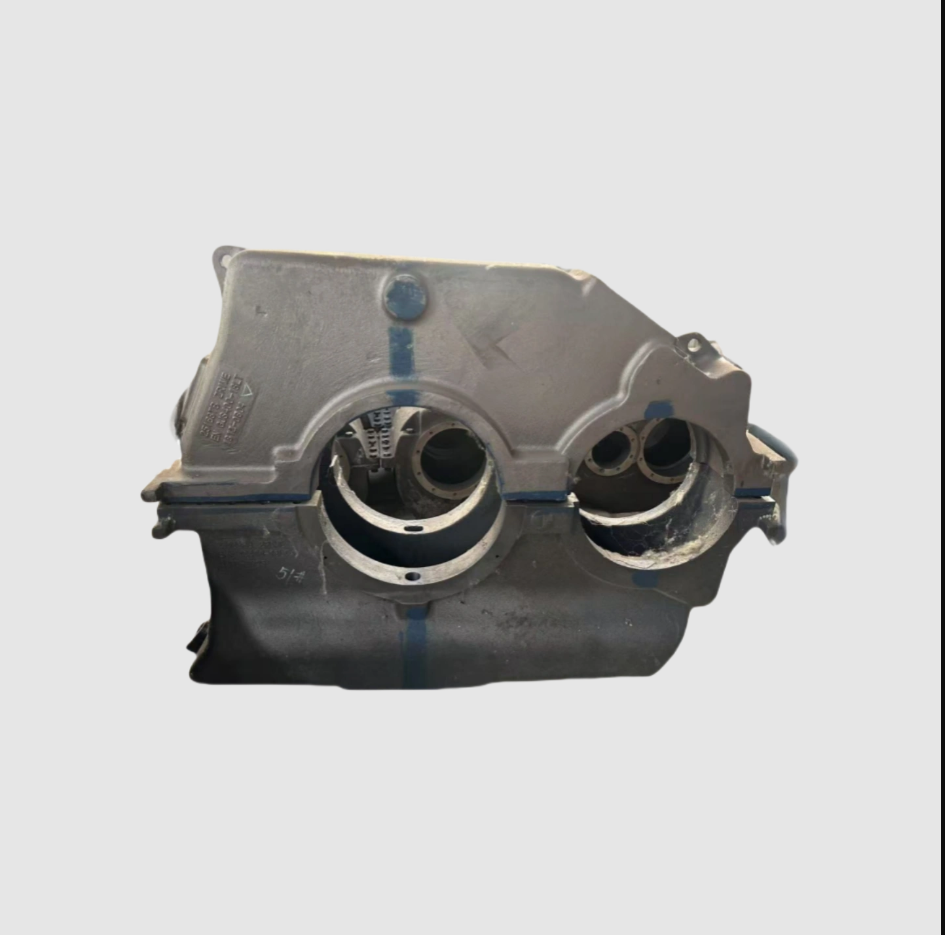

(Railway Cast Iron Gearbox)
2. Dimensional Precision & Tolerance Control: Making Certain a “Perfect Fit”
Railway jobs worldwide have rigorous requirements for dimensional interchangeability; any deviation can influence system integration. Precision is a mark of premium railway spreading producers.
2.1 Vital Dimensions: All interface dimensions and placing hole settings for all railway spreading parts need to be 100% examined.
2.2 Resistance Criteria: Need to follow globally acknowledged standards like ISO 2768, or particular tolerance requirements clearly agreed upon with the customer. For the Russian and CIS markets, special focus needs to be paid to following relevant resistance requirements in GOST 30893.
3. Restrictions on Casting Issues: Getting Rid Of Interior Hidden Dangers
The acceptance requirements for casting flaws need to be plainly specified in contracts and based on worldwide or regionally recognized specs. Leading railway casting parts producer procedures use extensive non-destructive screening.
3.1 Surface area Issues: Requirements like ISO 8062 can be referenced for analyzing casting surface area top quality. Cracks, cold shuts, and other issues impacting serviceability are not allowed.
3.2 Interior Issues: For vital load-bearing railway casting elements, non-destructive testing (e.g., ultrasonic, radiographic) must be done according to requirements like ISO 4990, EN 12680, or the GOST R 55724 collection, with clear acceptance levels for defects.
4. Metallographic Framework & Internal High Quality
The tiny framework of the material is the crucial basis for judging whether its interior high quality fulfills the criterion. This is an essential check for any expert train casting components producer.
4.1 Ductile Iron: The assessment of nodularization rate have to follow criteria such as ISO 945-1 or GOST 3443 to guarantee its mechanical properties fulfill the requirements for use under complicated working conditions.
4.2 Graphite Morphology & Matrix Framework: The metallographic assessment record is an important paper for validating the security of the manufacturing process and should comply with the relevant international or local standards.
(Railway Cast Iron Gearbox)
5. Anti-Corrosion Therapy & Surface Area Quality: Withstanding Harsh Environments
Given South Africa’s coastal high salinity, South America’s exotic rainforest humidity, and Russia’s extreme chilly and de-icing salts, anti-corrosion treatment for train casting elements is critical.
5.1 Therapy Procedures: Define the type of anti-corrosion process, such as hot-dip galvanizing (ISO 1461), epoxy finish, etc, and specify vital indications like finishing thickness, bond ( e.g., ISO 2409), and salt spray resistance ( e.g., ISO 9227).
5.2 Regional Standards: Should take notice of certain requirements of the target market, such as Russia’s GOST 9.307 anti-corrosion system accreditation, or South Africa’s SANS (South African National Requirement) standards. A global railway casting manufacturers will certainly be familiar with these varied needs.
