1. Fundamental Structure and Product Structure
1.1 The Nanoscale Design of Aerogels

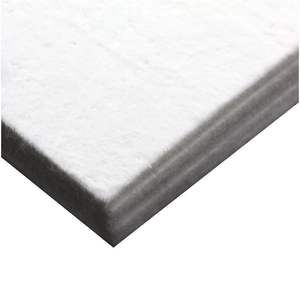

(Aerogel Blanket)
Aerogel coverings are advanced thermal insulation materials built upon an unique nanostructured structure, where a solid silica or polymer network extends an ultra-high porosity quantity– commonly going beyond 90% air.
This structure stems from the sol-gel procedure, in which a liquid forerunner (often tetramethyl orthosilicate or TMOS) undergoes hydrolysis and polycondensation to create a wet gel, followed by supercritical or ambient pressure drying to remove the liquid without breaking down the fragile porous network.
The resulting aerogel contains interconnected nanoparticles (3– 5 nm in diameter) forming pores on the scale of 10– 50 nm, little sufficient to suppress air molecule activity and therefore minimize conductive and convective warmth transfer.
This phenomenon, called Knudsen diffusion, significantly decreases the effective thermal conductivity of the product, frequently to values in between 0.012 and 0.018 W/(m · K) at space temperature level– among the lowest of any kind of strong insulator.
Despite their low density (as low as 0.003 g/cm ³), pure aerogels are naturally weak, requiring reinforcement for useful use in flexible blanket kind.
1.2 Reinforcement and Compound Style
To conquer frailty, aerogel powders or monoliths are mechanically incorporated right into fibrous substratums such as glass fiber, polyester, or aramid felts, creating a composite “covering” that maintains exceptional insulation while getting mechanical effectiveness.
The reinforcing matrix provides tensile toughness, flexibility, and dealing with toughness, enabling the product to be reduced, curved, and installed in complicated geometries without substantial efficiency loss.
Fiber web content typically ranges from 5% to 20% by weight, thoroughly stabilized to decrease thermal bridging– where fibers conduct warmth across the blanket– while ensuring structural integrity.
Some progressed designs incorporate hydrophobic surface therapies (e.g., trimethylsilyl groups) to avoid dampness absorption, which can weaken insulation performance and promote microbial development.
These adjustments allow aerogel coverings to preserve stable thermal buildings even in humid environments, broadening their applicability beyond regulated laboratory problems.
2. Production Processes and Scalability
( Aerogel Blanket)
2.1 From Sol-Gel to Roll-to-Roll Manufacturing
The production of aerogel blankets starts with the formation of a damp gel within a coarse mat, either by impregnating the substrate with a liquid forerunner or by co-forming the gel and fiber network concurrently.
After gelation, the solvent must be gotten rid of under conditions that stop capillary tension from falling down the nanopores; traditionally, this called for supercritical CO two drying, a pricey and energy-intensive procedure.
Current developments have allowed ambient pressure drying out through surface area modification and solvent exchange, dramatically lowering production costs and enabling continual roll-to-roll production.
In this scalable process, lengthy rolls of fiber mat are continuously coated with forerunner remedy, gelled, dried, and surface-treated, permitting high-volume outcome ideal for industrial applications.
This shift has actually been critical in transitioning aerogel coverings from particular niche laboratory products to readily sensible items made use of in building and construction, power, and transport industries.
2.2 Quality Assurance and Performance Uniformity
Guaranteeing consistent pore framework, regular thickness, and trusted thermal performance across big manufacturing sets is critical for real-world deployment.
Manufacturers utilize rigorous quality control procedures, consisting of laser scanning for thickness variant, infrared thermography for thermal mapping, and gravimetric analysis for dampness resistance.
Batch-to-batch reproducibility is vital, specifically in aerospace and oil & gas industries, where failing as a result of insulation failure can have extreme repercussions.
Additionally, standardized testing according to ASTM C177 (warmth flow meter) or ISO 9288 guarantees accurate reporting of thermal conductivity and allows fair contrast with typical insulators like mineral wool or foam.
3. Thermal and Multifunctional Properties
3.1 Superior Insulation Throughout Temperature Level Varies
Aerogel blankets exhibit exceptional thermal efficiency not just at ambient temperatures yet also across extreme arrays– from cryogenic conditions listed below -100 ° C to high temperatures surpassing 600 ° C, relying on the base product and fiber type.
At cryogenic temperatures, conventional foams may break or shed performance, whereas aerogel coverings remain adaptable and keep reduced thermal conductivity, making them perfect for LNG pipelines and tank.
In high-temperature applications, such as industrial furnaces or exhaust systems, they provide efficient insulation with decreased density contrasted to bulkier alternatives, conserving area and weight.
Their low emissivity and capability to reflect induction heat even more boost efficiency in radiant obstacle configurations.
This wide operational envelope makes aerogel blankets distinctly versatile amongst thermal monitoring solutions.
3.2 Acoustic and Fire-Resistant Characteristics
Past thermal insulation, aerogel coverings demonstrate notable sound-dampening residential or commercial properties because of their open, tortuous pore structure that dissipates acoustic power through viscous losses.
They are progressively used in auto and aerospace cabins to decrease sound pollution without adding significant mass.
In addition, most silica-based aerogel blankets are non-combustible, achieving Class A fire rankings, and do not launch harmful fumes when revealed to flame– crucial for constructing safety and security and public infrastructure.
Their smoke thickness is incredibly low, boosting exposure during emergency emptyings.
4. Applications in Sector and Arising Technologies
4.1 Energy Efficiency in Building and Industrial Systems
Aerogel blankets are changing power performance in architecture and commercial engineering by making it possible for thinner, higher-performance insulation layers.
In structures, they are made use of in retrofitting historic frameworks where wall density can not be raised, or in high-performance façades and home windows to reduce thermal bridging.
In oil and gas, they protect pipes bring warm fluids or cryogenic LNG, lowering energy loss and stopping condensation or ice development.
Their light-weight nature likewise minimizes architectural lots, specifically helpful in overseas systems and mobile systems.
4.2 Aerospace, Automotive, and Customer Applications
In aerospace, aerogel blankets protect spacecraft from severe temperature level variations during re-entry and shield sensitive tools from thermal cycling in space.
NASA has actually used them in Mars wanderers and astronaut suits for easy thermal policy.
Automotive suppliers integrate aerogel insulation into electrical automobile battery loads to prevent thermal runaway and boost security and efficiency.
Consumer products, consisting of exterior apparel, shoes, and outdoor camping gear, now include aerogel linings for premium heat without mass.
As production costs decline and sustainability boosts, aerogel blankets are positioned to end up being mainstream options in worldwide initiatives to minimize energy consumption and carbon emissions.
In conclusion, aerogel blankets stand for a convergence of nanotechnology and useful design, providing unequaled thermal performance in a flexible, durable style.
Their capacity to conserve energy, room, and weight while preserving security and ecological compatibility settings them as key enablers of lasting innovation throughout varied sectors.
