1. Product Principles and Microstructural Qualities of Alumina Ceramics
1.1 Composition, Pureness Qualities, and Crystallographic Quality

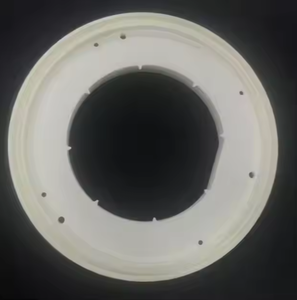

(Alumina Ceramic Wear Liners)
Alumina (Al ₂ O FOUR), or light weight aluminum oxide, is one of one of the most extensively made use of technological ceramics in industrial engineering due to its superb equilibrium of mechanical strength, chemical stability, and cost-effectiveness.
When crafted right into wear linings, alumina porcelains are normally made with pureness levels varying from 85% to 99.9%, with greater pureness corresponding to boosted solidity, use resistance, and thermal efficiency.
The dominant crystalline phase is alpha-alumina, which adopts a hexagonal close-packed (HCP) framework identified by strong ionic and covalent bonding, adding to its high melting factor (~ 2072 ° C )and low thermal conductivity.
Microstructurally, alumina ceramics consist of fine, equiaxed grains whose size and circulation are regulated throughout sintering to optimize mechanical properties.
Grain sizes generally vary from submicron to numerous micrometers, with better grains generally enhancing crack toughness and resistance to crack proliferation under unpleasant filling.
Small additives such as magnesium oxide (MgO) are usually presented in trace amounts to prevent abnormal grain growth during high-temperature sintering, making sure uniform microstructure and dimensional stability.
The resulting product shows a Vickers hardness of 1500– 2000 HV, significantly surpassing that of hardened steel (commonly 600– 800 HV), making it extremely resistant to surface degradation in high-wear atmospheres.
1.2 Mechanical and Thermal Performance in Industrial Issues
Alumina ceramic wear liners are chosen primarily for their superior resistance to unpleasant, abrasive, and gliding wear devices prevalent in bulk product handling systems.
They have high compressive toughness (as much as 3000 MPa), good flexural stamina (300– 500 MPa), and exceptional stiffness (Youthful’s modulus of ~ 380 Grade point average), allowing them to stand up to extreme mechanical loading without plastic deformation.
Although inherently fragile compared to steels, their reduced coefficient of rubbing and high surface hardness minimize fragment attachment and decrease wear prices by orders of size relative to steel or polymer-based options.
Thermally, alumina maintains structural integrity up to 1600 ° C in oxidizing ambiences, allowing usage in high-temperature processing settings such as kiln feed systems, boiler ducting, and pyroprocessing tools.
( Alumina Ceramic Wear Liners)
Its reduced thermal growth coefficient (~ 8 × 10 ⁻⁶/ K) adds to dimensional stability throughout thermal cycling, decreasing the risk of breaking due to thermal shock when properly set up.
Additionally, alumina is electrically protecting and chemically inert to a lot of acids, alkalis, and solvents, making it ideal for harsh environments where metallic liners would certainly weaken quickly.
These consolidated buildings make alumina ceramics excellent for safeguarding crucial infrastructure in mining, power generation, concrete manufacturing, and chemical processing sectors.
2. Production Processes and Style Integration Techniques
2.1 Shaping, Sintering, and Quality Assurance Protocols
The manufacturing of alumina ceramic wear linings includes a sequence of precision manufacturing steps made to accomplish high thickness, very little porosity, and constant mechanical efficiency.
Raw alumina powders are refined through milling, granulation, and forming strategies such as dry pushing, isostatic pressing, or extrusion, depending upon the wanted geometry– tiles, plates, pipes, or custom-shaped sections.
Eco-friendly bodies are after that sintered at temperatures between 1500 ° C and 1700 ° C in air, promoting densification with solid-state diffusion and attaining relative densities surpassing 95%, commonly coming close to 99% of theoretical thickness.
Full densification is vital, as recurring porosity works as stress and anxiety concentrators and increases wear and fracture under service problems.
Post-sintering operations might include diamond grinding or splashing to achieve tight dimensional tolerances and smooth surface area finishes that lessen rubbing and bit trapping.
Each batch undertakes extensive quality assurance, consisting of X-ray diffraction (XRD) for stage evaluation, scanning electron microscopy (SEM) for microstructural evaluation, and solidity and bend testing to confirm compliance with worldwide criteria such as ISO 6474 or ASTM B407.
2.2 Installing Strategies and System Compatibility Factors To Consider
Efficient assimilation of alumina wear liners right into commercial tools requires careful attention to mechanical add-on and thermal development compatibility.
Typical installment techniques include sticky bonding using high-strength ceramic epoxies, mechanical attaching with studs or supports, and embedding within castable refractory matrices.
Adhesive bonding is widely used for level or delicately curved surface areas, providing consistent stress and anxiety circulation and resonance damping, while stud-mounted systems enable very easy substitute and are chosen in high-impact areas.
To suit differential thermal development in between alumina and metal substrates (e.g., carbon steel), crafted voids, flexible adhesives, or certified underlayers are integrated to prevent delamination or fracturing during thermal transients.
Developers need to also consider edge defense, as ceramic tiles are susceptible to breaking at subjected edges; services consist of diagonal edges, metal shadows, or overlapping floor tile arrangements.
Correct installation guarantees lengthy service life and optimizes the safety feature of the lining system.
3. Use Mechanisms and Performance Examination in Service Environments
3.1 Resistance to Abrasive, Erosive, and Effect Loading
Alumina ceramic wear linings master settings controlled by three main wear systems: two-body abrasion, three-body abrasion, and particle disintegration.
In two-body abrasion, hard fragments or surface areas directly gouge the lining surface area, a typical incident in chutes, hoppers, and conveyor shifts.
Three-body abrasion includes loose particles caught in between the lining and moving material, causing rolling and damaging activity that progressively gets rid of material.
Abrasive wear takes place when high-velocity fragments strike the surface area, especially in pneumatic conveying lines and cyclone separators.
Due to its high solidity and low fracture sturdiness, alumina is most effective in low-impact, high-abrasion circumstances.
It does exceptionally well against siliceous ores, coal, fly ash, and concrete clinker, where wear rates can be minimized by 10– 50 times contrasted to light steel liners.
Nonetheless, in applications including repeated high-energy impact, such as main crusher chambers, hybrid systems integrating alumina floor tiles with elastomeric supports or metallic shields are typically employed to absorb shock and avoid fracture.
3.2 Area Testing, Life Process Analysis, and Failing Mode Evaluation
Efficiency analysis of alumina wear linings includes both research laboratory screening and field monitoring.
Standardized examinations such as the ASTM G65 dry sand rubber wheel abrasion examination offer relative wear indices, while customized slurry erosion gears imitate site-specific problems.
In industrial setups, put on price is typically gauged in mm/year or g/kWh, with life span estimates based on preliminary density and observed deterioration.
Failure settings consist of surface sprucing up, micro-cracking, spalling at edges, and total tile dislodgement due to sticky deterioration or mechanical overload.
Origin evaluation commonly exposes installation mistakes, incorrect grade option, or unanticipated influence lots as primary contributors to premature failure.
Life process expense analysis consistently demonstrates that in spite of higher first prices, alumina liners use premium overall expense of ownership because of prolonged replacement periods, lowered downtime, and reduced upkeep labor.
4. Industrial Applications and Future Technological Advancements
4.1 Sector-Specific Implementations Across Heavy Industries
Alumina ceramic wear linings are deployed throughout a broad spectrum of industrial fields where material degradation postures operational and financial obstacles.
In mining and mineral processing, they safeguard transfer chutes, mill linings, hydrocyclones, and slurry pumps from rough slurries consisting of quartz, hematite, and other hard minerals.
In power plants, alumina ceramic tiles line coal pulverizer air ducts, central heating boiler ash hoppers, and electrostatic precipitator elements revealed to fly ash erosion.
Concrete producers utilize alumina liners in raw mills, kiln inlet areas, and clinker conveyors to fight the extremely abrasive nature of cementitious products.
The steel industry employs them in blast heater feed systems and ladle shadows, where resistance to both abrasion and modest thermal tons is vital.
Even in much less standard applications such as waste-to-energy plants and biomass handling systems, alumina porcelains provide durable protection versus chemically hostile and coarse materials.
4.2 Arising Patterns: Compound Equipments, Smart Liners, and Sustainability
Current study concentrates on improving the durability and performance of alumina wear systems via composite style.
Alumina-zirconia (Al Two O FOUR-ZrO ₂) compounds leverage transformation toughening from zirconia to boost crack resistance, while alumina-titanium carbide (Al ₂ O THREE-TiC) qualities provide enhanced efficiency in high-temperature gliding wear.
One more innovation entails installing sensors within or under ceramic linings to keep an eye on wear progression, temperature, and effect regularity– enabling predictive upkeep and digital twin assimilation.
From a sustainability perspective, the extended life span of alumina liners decreases product usage and waste generation, aligning with round economy concepts in industrial procedures.
Recycling of invested ceramic liners right into refractory aggregates or building products is additionally being discovered to decrease environmental impact.
To conclude, alumina ceramic wear liners represent a keystone of modern industrial wear protection technology.
Their extraordinary solidity, thermal security, and chemical inertness, combined with fully grown manufacturing and setup techniques, make them indispensable in combating product deterioration throughout heavy industries.
As product science advances and electronic surveillance ends up being extra incorporated, the future generation of wise, durable alumina-based systems will certainly even more enhance functional performance and sustainability in rough atmospheres.
