1. Crystal Structure and Layered Anisotropy
1.1 The 2H and 1T Polymorphs: Structural and Digital Duality

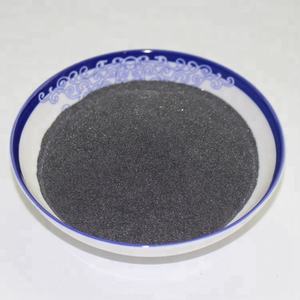

(Molybdenum Disulfide)
Molybdenum disulfide (MoS TWO) is a split change metal dichalcogenide (TMD) with a chemical formula consisting of one molybdenum atom sandwiched in between two sulfur atoms in a trigonal prismatic sychronisation, developing covalently adhered S– Mo– S sheets.
These specific monolayers are piled vertically and held together by weak van der Waals pressures, allowing simple interlayer shear and exfoliation to atomically slim two-dimensional (2D) crystals– a structural feature main to its diverse functional roles.
MoS two exists in several polymorphic types, one of the most thermodynamically steady being the semiconducting 2H phase (hexagonal balance), where each layer shows a straight bandgap of ~ 1.8 eV in monolayer form that transitions to an indirect bandgap (~ 1.3 eV) in bulk, a phenomenon crucial for optoelectronic applications.
In contrast, the metastable 1T stage (tetragonal proportion) embraces an octahedral coordination and acts as a metal conductor as a result of electron contribution from the sulfur atoms, allowing applications in electrocatalysis and conductive compounds.
Stage transitions between 2H and 1T can be generated chemically, electrochemically, or through pressure engineering, using a tunable system for making multifunctional devices.
The ability to stabilize and pattern these stages spatially within a single flake opens up pathways for in-plane heterostructures with unique electronic domains.
1.2 Defects, Doping, and Side States
The performance of MoS ₂ in catalytic and digital applications is very sensitive to atomic-scale defects and dopants.
Intrinsic factor defects such as sulfur jobs function as electron benefactors, enhancing n-type conductivity and serving as active websites for hydrogen advancement responses (HER) in water splitting.
Grain boundaries and line issues can either hamper cost transportation or create local conductive pathways, depending on their atomic configuration.
Controlled doping with change metals (e.g., Re, Nb) or chalcogens (e.g., Se) allows fine-tuning of the band structure, carrier concentration, and spin-orbit combining impacts.
Especially, the sides of MoS ₂ nanosheets, especially the metallic Mo-terminated (10– 10) edges, display considerably higher catalytic task than the inert basal aircraft, motivating the layout of nanostructured stimulants with taken full advantage of edge exposure.
( Molybdenum Disulfide)
These defect-engineered systems exhibit just how atomic-level control can transform a normally taking place mineral into a high-performance functional material.
2. Synthesis and Nanofabrication Strategies
2.1 Bulk and Thin-Film Manufacturing Methods
All-natural molybdenite, the mineral form of MoS ₂, has been made use of for years as a solid lubricating substance, yet modern applications demand high-purity, structurally regulated artificial kinds.
Chemical vapor deposition (CVD) is the leading technique for generating large-area, high-crystallinity monolayer and few-layer MoS ₂ movies on substrates such as SiO TWO/ Si, sapphire, or adaptable polymers.
In CVD, molybdenum and sulfur forerunners (e.g., MoO two and S powder) are evaporated at high temperatures (700– 1000 ° C )under controlled atmospheres, making it possible for layer-by-layer development with tunable domain dimension and orientation.
Mechanical exfoliation (“scotch tape method”) stays a benchmark for research-grade examples, producing ultra-clean monolayers with very little flaws, though it does not have scalability.
Liquid-phase exfoliation, entailing sonication or shear blending of mass crystals in solvents or surfactant remedies, creates colloidal dispersions of few-layer nanosheets appropriate for layers, composites, and ink formulations.
2.2 Heterostructure Assimilation and Tool Patterning
Truth possibility of MoS two emerges when incorporated right into vertical or side heterostructures with various other 2D materials such as graphene, hexagonal boron nitride (h-BN), or WSe two.
These van der Waals heterostructures make it possible for the style of atomically accurate tools, consisting of tunneling transistors, photodetectors, and light-emitting diodes (LEDs), where interlayer charge and power transfer can be engineered.
Lithographic patterning and etching techniques permit the fabrication of nanoribbons, quantum dots, and field-effect transistors (FETs) with channel sizes to tens of nanometers.
Dielectric encapsulation with h-BN safeguards MoS ₂ from ecological degradation and reduces fee scattering, dramatically improving service provider flexibility and gadget security.
These manufacture breakthroughs are important for transitioning MoS two from research laboratory interest to practical component in next-generation nanoelectronics.
3. Functional Characteristics and Physical Mechanisms
3.1 Tribological Habits and Strong Lubrication
Among the earliest and most enduring applications of MoS ₂ is as a dry solid lubricating substance in severe atmospheres where liquid oils stop working– such as vacuum cleaner, high temperatures, or cryogenic conditions.
The reduced interlayer shear strength of the van der Waals gap permits easy sliding between S– Mo– S layers, resulting in a coefficient of rubbing as reduced as 0.03– 0.06 under optimum conditions.
Its efficiency is additionally enhanced by solid bond to metal surface areas and resistance to oxidation up to ~ 350 ° C in air, beyond which MoO four formation increases wear.
MoS two is widely made use of in aerospace mechanisms, air pump, and weapon parts, frequently applied as a coating by means of burnishing, sputtering, or composite consolidation into polymer matrices.
Current studies show that humidity can degrade lubricity by boosting interlayer adhesion, prompting study right into hydrophobic finishings or crossbreed lubes for improved environmental stability.
3.2 Digital and Optoelectronic Action
As a direct-gap semiconductor in monolayer form, MoS ₂ exhibits strong light-matter interaction, with absorption coefficients going beyond 10 five cm ⁻¹ and high quantum yield in photoluminescence.
This makes it perfect for ultrathin photodetectors with quick feedback times and broadband level of sensitivity, from visible to near-infrared wavelengths.
Field-effect transistors based on monolayer MoS two demonstrate on/off ratios > 10 ⁸ and provider flexibilities approximately 500 centimeters ²/ V · s in suspended examples, though substrate interactions normally restrict sensible values to 1– 20 cm ²/ V · s.
Spin-valley coupling, a repercussion of solid spin-orbit communication and damaged inversion proportion, enables valleytronics– a novel standard for info encoding utilizing the valley degree of flexibility in energy room.
These quantum sensations setting MoS two as a prospect for low-power reasoning, memory, and quantum computer elements.
4. Applications in Power, Catalysis, and Arising Technologies
4.1 Electrocatalysis for Hydrogen Development Response (HER)
MoS ₂ has emerged as a promising non-precious choice to platinum in the hydrogen evolution response (HER), an essential process in water electrolysis for eco-friendly hydrogen manufacturing.
While the basic aircraft is catalytically inert, edge websites and sulfur jobs show near-optimal hydrogen adsorption totally free power (ΔG_H * ≈ 0), equivalent to Pt.
Nanostructuring strategies– such as producing up and down lined up nanosheets, defect-rich films, or doped hybrids with Ni or Carbon monoxide– make best use of active site thickness and electric conductivity.
When incorporated right into electrodes with conductive sustains like carbon nanotubes or graphene, MoS two achieves high existing densities and lasting security under acidic or neutral problems.
More improvement is attained by stabilizing the metal 1T stage, which enhances intrinsic conductivity and exposes extra energetic sites.
4.2 Flexible Electronics, Sensors, and Quantum Gadgets
The mechanical adaptability, transparency, and high surface-to-volume ratio of MoS two make it suitable for flexible and wearable electronic devices.
Transistors, reasoning circuits, and memory devices have actually been demonstrated on plastic substrates, enabling bendable displays, health monitors, and IoT sensors.
MoS ₂-based gas sensing units show high level of sensitivity to NO TWO, NH FIVE, and H ₂ O due to charge transfer upon molecular adsorption, with action times in the sub-second variety.
In quantum modern technologies, MoS two hosts local excitons and trions at cryogenic temperatures, and strain-induced pseudomagnetic areas can catch providers, allowing single-photon emitters and quantum dots.
These growths highlight MoS ₂ not only as a practical material however as a system for checking out fundamental physics in lowered dimensions.
In summary, molybdenum disulfide exemplifies the merging of timeless products scientific research and quantum engineering.
From its old duty as a lube to its modern implementation in atomically slim electronics and energy systems, MoS two remains to redefine the boundaries of what is feasible in nanoscale products design.
As synthesis, characterization, and assimilation strategies breakthrough, its effect throughout science and innovation is poised to increase also better.
