1. Structure and Structural Residences of Fused Quartz
1.1 Amorphous Network and Thermal Security

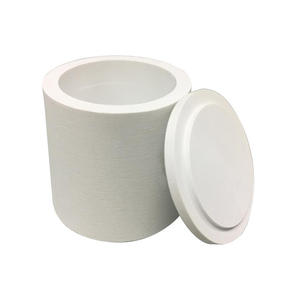

(Quartz Crucibles)
Quartz crucibles are high-temperature containers made from integrated silica, a synthetic kind of silicon dioxide (SiO TWO) originated from the melting of all-natural quartz crystals at temperatures surpassing 1700 ° C.
Unlike crystalline quartz, merged silica possesses an amorphous three-dimensional network of corner-sharing SiO ₄ tetrahedra, which conveys exceptional thermal shock resistance and dimensional stability under fast temperature modifications.
This disordered atomic framework protects against cleavage along crystallographic planes, making fused silica much less susceptible to cracking during thermal cycling contrasted to polycrystalline porcelains.
The product shows a low coefficient of thermal development (~ 0.5 × 10 ⁻⁶/ K), one of the lowest among design materials, allowing it to hold up against extreme thermal gradients without fracturing– a vital residential property in semiconductor and solar cell production.
Integrated silica likewise maintains exceptional chemical inertness against the majority of acids, liquified metals, and slags, although it can be gradually engraved by hydrofluoric acid and hot phosphoric acid.
Its high conditioning point (~ 1600– 1730 ° C, depending on purity and OH web content) allows sustained procedure at elevated temperature levels needed for crystal development and metal refining procedures.
1.2 Purity Grading and Micronutrient Control
The performance of quartz crucibles is extremely based on chemical purity, particularly the focus of metal contaminations such as iron, sodium, potassium, aluminum, and titanium.
Also trace quantities (components per million level) of these pollutants can migrate right into molten silicon throughout crystal growth, deteriorating the electrical residential properties of the resulting semiconductor product.
High-purity qualities utilized in electronics making usually contain over 99.95% SiO ₂, with alkali metal oxides restricted to much less than 10 ppm and transition metals listed below 1 ppm.
Impurities originate from raw quartz feedstock or processing devices and are reduced through careful selection of mineral resources and purification techniques like acid leaching and flotation.
In addition, the hydroxyl (OH) web content in integrated silica impacts its thermomechanical behavior; high-OH types supply better UV transmission but reduced thermal security, while low-OH variants are liked for high-temperature applications as a result of minimized bubble development.
( Quartz Crucibles)
2. Manufacturing Process and Microstructural Design
2.1 Electrofusion and Forming Strategies
Quartz crucibles are largely produced using electrofusion, a procedure in which high-purity quartz powder is fed into a revolving graphite mold and mildew within an electrical arc furnace.
An electrical arc produced between carbon electrodes melts the quartz particles, which solidify layer by layer to create a smooth, thick crucible form.
This technique produces a fine-grained, homogeneous microstructure with minimal bubbles and striae, vital for uniform heat distribution and mechanical honesty.
Different approaches such as plasma combination and fire blend are made use of for specialized applications calling for ultra-low contamination or specific wall surface thickness accounts.
After casting, the crucibles undertake controlled air conditioning (annealing) to ease inner tensions and protect against spontaneous fracturing throughout solution.
Surface area ending up, consisting of grinding and brightening, ensures dimensional precision and minimizes nucleation websites for unwanted crystallization throughout use.
2.2 Crystalline Layer Design and Opacity Control
A specifying attribute of contemporary quartz crucibles, especially those utilized in directional solidification of multicrystalline silicon, is the engineered internal layer framework.
During manufacturing, the internal surface is frequently treated to promote the development of a slim, regulated layer of cristobalite– a high-temperature polymorph of SiO ₂– upon initial heating.
This cristobalite layer works as a diffusion barrier, reducing straight interaction between molten silicon and the underlying merged silica, therefore minimizing oxygen and metal contamination.
Moreover, the visibility of this crystalline stage improves opacity, improving infrared radiation absorption and advertising even more uniform temperature circulation within the melt.
Crucible developers carefully balance the thickness and continuity of this layer to avoid spalling or breaking due to quantity changes during stage transitions.
3. Useful Performance in High-Temperature Applications
3.1 Function in Silicon Crystal Development Processes
Quartz crucibles are essential in the manufacturing of monocrystalline and multicrystalline silicon, serving as the main container for molten silicon in Czochralski (CZ) and directional solidification systems (DS).
In the CZ procedure, a seed crystal is dipped right into liquified silicon kept in a quartz crucible and slowly drew upwards while revolving, permitting single-crystal ingots to form.
Although the crucible does not directly call the expanding crystal, interactions between liquified silicon and SiO two wall surfaces result in oxygen dissolution right into the melt, which can affect carrier life time and mechanical toughness in completed wafers.
In DS processes for photovoltaic-grade silicon, large-scale quartz crucibles make it possible for the controlled cooling of hundreds of kilograms of liquified silicon into block-shaped ingots.
Right here, coatings such as silicon nitride (Si two N ₄) are related to the internal surface to avoid adhesion and promote easy release of the strengthened silicon block after cooling down.
3.2 Deterioration Systems and Service Life Limitations
Despite their robustness, quartz crucibles deteriorate during duplicated high-temperature cycles due to a number of interrelated systems.
Thick flow or contortion occurs at extended exposure over 1400 ° C, resulting in wall surface thinning and loss of geometric stability.
Re-crystallization of integrated silica right into cristobalite creates inner anxieties as a result of volume growth, possibly creating cracks or spallation that contaminate the thaw.
Chemical disintegration develops from decrease reactions in between molten silicon and SiO ₂: SiO TWO + Si → 2SiO(g), generating volatile silicon monoxide that runs away and deteriorates the crucible wall surface.
Bubble formation, driven by entraped gases or OH groups, better jeopardizes architectural toughness and thermal conductivity.
These degradation pathways limit the number of reuse cycles and necessitate exact procedure control to maximize crucible lifespan and item return.
4. Arising Technologies and Technical Adaptations
4.1 Coatings and Compound Alterations
To boost performance and longevity, progressed quartz crucibles incorporate practical finishings and composite frameworks.
Silicon-based anti-sticking layers and drugged silica layers boost launch characteristics and decrease oxygen outgassing during melting.
Some suppliers incorporate zirconia (ZrO ₂) particles right into the crucible wall to enhance mechanical stamina and resistance to devitrification.
Study is recurring into completely transparent or gradient-structured crucibles made to maximize radiant heat transfer in next-generation solar heater layouts.
4.2 Sustainability and Recycling Obstacles
With enhancing demand from the semiconductor and photovoltaic or pv sectors, lasting use of quartz crucibles has become a concern.
Spent crucibles polluted with silicon deposit are difficult to reuse as a result of cross-contamination dangers, causing significant waste generation.
Efforts concentrate on establishing reusable crucible linings, improved cleaning methods, and closed-loop recycling systems to recoup high-purity silica for second applications.
As gadget effectiveness demand ever-higher material pureness, the function of quartz crucibles will certainly continue to progress with development in products science and process engineering.
In summary, quartz crucibles represent a crucial interface between basic materials and high-performance electronic products.
Their one-of-a-kind combination of pureness, thermal strength, and structural style makes it possible for the construction of silicon-based modern technologies that power contemporary computer and renewable resource systems.
