1. Product Residences and Structural Honesty
1.1 Innate Features of Silicon Carbide

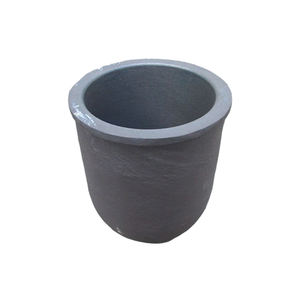

(Silicon Carbide Crucibles)
Silicon carbide (SiC) is a covalent ceramic compound made up of silicon and carbon atoms prepared in a tetrahedral latticework structure, primarily existing in over 250 polytypic kinds, with 6H, 4H, and 3C being one of the most highly relevant.
Its solid directional bonding conveys phenomenal solidity (Mohs ~ 9.5), high thermal conductivity (80– 120 W/(m · K )for pure solitary crystals), and exceptional chemical inertness, making it one of the most durable materials for severe settings.
The large bandgap (2.9– 3.3 eV) guarantees outstanding electric insulation at space temperature level and high resistance to radiation damage, while its reduced thermal development coefficient (~ 4.0 × 10 ⁻⁶/ K) adds to premium thermal shock resistance.
These inherent buildings are protected also at temperature levels surpassing 1600 ° C, allowing SiC to preserve structural integrity under long term direct exposure to molten steels, slags, and reactive gases.
Unlike oxide ceramics such as alumina, SiC does not respond readily with carbon or kind low-melting eutectics in decreasing ambiences, a crucial benefit in metallurgical and semiconductor processing.
When made right into crucibles– vessels created to consist of and warm materials– SiC surpasses traditional materials like quartz, graphite, and alumina in both life-span and procedure integrity.
1.2 Microstructure and Mechanical Security
The performance of SiC crucibles is closely linked to their microstructure, which relies on the manufacturing technique and sintering additives used.
Refractory-grade crucibles are commonly produced through reaction bonding, where porous carbon preforms are penetrated with molten silicon, creating β-SiC via the response Si(l) + C(s) → SiC(s).
This procedure generates a composite framework of primary SiC with recurring cost-free silicon (5– 10%), which boosts thermal conductivity yet may restrict use over 1414 ° C(the melting point of silicon).
Alternatively, fully sintered SiC crucibles are made with solid-state or liquid-phase sintering using boron and carbon or alumina-yttria ingredients, achieving near-theoretical density and greater pureness.
These exhibit exceptional creep resistance and oxidation security however are a lot more pricey and tough to produce in plus sizes.
( Silicon Carbide Crucibles)
The fine-grained, interlocking microstructure of sintered SiC supplies outstanding resistance to thermal tiredness and mechanical disintegration, essential when handling liquified silicon, germanium, or III-V substances in crystal development procedures.
Grain boundary engineering, consisting of the control of additional stages and porosity, plays a crucial duty in figuring out long-term resilience under cyclic heating and hostile chemical environments.
2. Thermal Performance and Environmental Resistance
2.1 Thermal Conductivity and Warmth Circulation
Among the specifying advantages of SiC crucibles is their high thermal conductivity, which enables quick and consistent warmth transfer during high-temperature processing.
In contrast to low-conductivity materials like fused silica (1– 2 W/(m · K)), SiC efficiently distributes thermal power throughout the crucible wall surface, decreasing localized hot spots and thermal gradients.
This harmony is necessary in processes such as directional solidification of multicrystalline silicon for photovoltaics, where temperature homogeneity straight impacts crystal quality and issue density.
The mix of high conductivity and reduced thermal development causes an extremely high thermal shock criterion (R = k(1 − ν)α/ σ), making SiC crucibles resistant to breaking during fast heating or cooling cycles.
This enables faster heating system ramp prices, enhanced throughput, and reduced downtime because of crucible failure.
Furthermore, the material’s capacity to withstand repeated thermal biking without substantial destruction makes it suitable for set handling in commercial heating systems running above 1500 ° C.
2.2 Oxidation and Chemical Compatibility
At raised temperatures in air, SiC undergoes passive oxidation, developing a protective layer of amorphous silica (SiO ₂) on its surface: SiC + 3/2 O ₂ → SiO TWO + CO.
This glassy layer densifies at high temperatures, serving as a diffusion barrier that slows more oxidation and preserves the underlying ceramic structure.
However, in minimizing environments or vacuum problems– common in semiconductor and steel refining– oxidation is reduced, and SiC stays chemically secure against liquified silicon, aluminum, and several slags.
It stands up to dissolution and response with liquified silicon up to 1410 ° C, although long term exposure can lead to small carbon pickup or interface roughening.
Crucially, SiC does not present metallic contaminations right into delicate thaws, a crucial requirement for electronic-grade silicon manufacturing where contamination by Fe, Cu, or Cr should be kept below ppb levels.
However, care should be taken when refining alkaline earth metals or extremely reactive oxides, as some can rust SiC at severe temperature levels.
3. Production Processes and Quality Assurance
3.1 Construction Strategies and Dimensional Control
The manufacturing of SiC crucibles includes shaping, drying, and high-temperature sintering or infiltration, with techniques picked based upon needed purity, size, and application.
Typical creating strategies include isostatic pressing, extrusion, and slip casting, each offering various degrees of dimensional precision and microstructural harmony.
For huge crucibles used in solar ingot casting, isostatic pressing makes certain regular wall density and density, lowering the danger of asymmetric thermal expansion and failing.
Reaction-bonded SiC (RBSC) crucibles are affordable and commonly utilized in foundries and solar industries, though residual silicon restrictions optimal service temperature level.
Sintered SiC (SSiC) versions, while much more pricey, offer superior pureness, strength, and resistance to chemical assault, making them suitable for high-value applications like GaAs or InP crystal growth.
Accuracy machining after sintering may be called for to attain limited tolerances, particularly for crucibles made use of in upright slope freeze (VGF) or Czochralski (CZ) systems.
Surface ending up is crucial to lessen nucleation sites for issues and make certain smooth thaw flow throughout spreading.
3.2 Quality Assurance and Efficiency Recognition
Extensive quality assurance is important to ensure dependability and long life of SiC crucibles under demanding operational conditions.
Non-destructive assessment methods such as ultrasonic testing and X-ray tomography are used to identify internal cracks, gaps, or thickness variations.
Chemical evaluation using XRF or ICP-MS confirms reduced degrees of metallic impurities, while thermal conductivity and flexural strength are determined to validate material uniformity.
Crucibles are typically subjected to simulated thermal cycling tests before delivery to identify prospective failure settings.
Set traceability and accreditation are typical in semiconductor and aerospace supply chains, where element failing can cause expensive manufacturing losses.
4. Applications and Technical Effect
4.1 Semiconductor and Photovoltaic Industries
Silicon carbide crucibles play an essential duty in the production of high-purity silicon for both microelectronics and solar batteries.
In directional solidification heating systems for multicrystalline photovoltaic or pv ingots, large SiC crucibles work as the main container for liquified silicon, enduring temperatures above 1500 ° C for multiple cycles.
Their chemical inertness prevents contamination, while their thermal stability guarantees consistent solidification fronts, causing higher-quality wafers with less misplacements and grain boundaries.
Some suppliers coat the inner surface with silicon nitride or silica to further decrease bond and promote ingot launch after cooling.
In research-scale Czochralski growth of substance semiconductors, smaller sized SiC crucibles are used to hold thaws of GaAs, InSb, or CdTe, where marginal sensitivity and dimensional security are extremely important.
4.2 Metallurgy, Factory, and Arising Technologies
Beyond semiconductors, SiC crucibles are indispensable in metal refining, alloy preparation, and laboratory-scale melting operations involving light weight aluminum, copper, and rare-earth elements.
Their resistance to thermal shock and erosion makes them suitable for induction and resistance furnaces in factories, where they outlast graphite and alumina choices by several cycles.
In additive manufacturing of responsive steels, SiC containers are utilized in vacuum induction melting to avoid crucible failure and contamination.
Arising applications consist of molten salt reactors and focused solar energy systems, where SiC vessels might consist of high-temperature salts or fluid steels for thermal power storage space.
With recurring advancements in sintering modern technology and layer engineering, SiC crucibles are positioned to sustain next-generation materials handling, making it possible for cleaner, much more reliable, and scalable commercial thermal systems.
In recap, silicon carbide crucibles stand for a critical making it possible for modern technology in high-temperature material synthesis, combining extraordinary thermal, mechanical, and chemical performance in a solitary engineered element.
Their extensive fostering throughout semiconductor, solar, and metallurgical markets emphasizes their role as a foundation of modern-day industrial porcelains.
