1. Material Structures and Collaborating Layout
1.1 Intrinsic Qualities of Constituent Phases

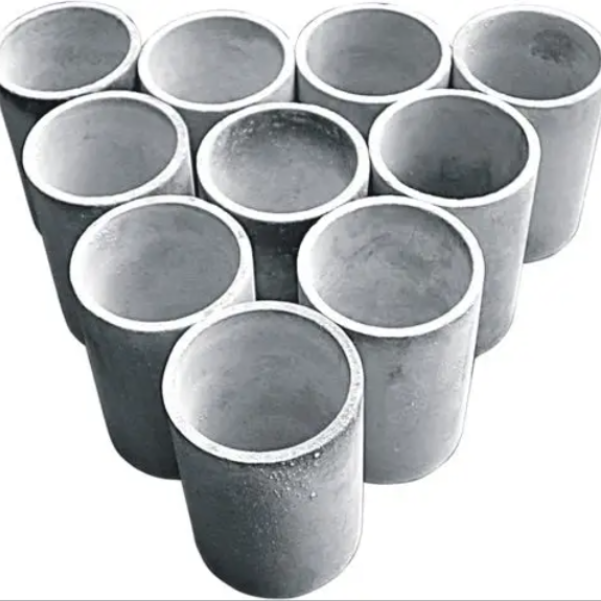

(Silicon nitride and silicon carbide composite ceramic)
Silicon nitride (Si two N ₄) and silicon carbide (SiC) are both covalently bonded, non-oxide porcelains renowned for their remarkable performance in high-temperature, harsh, and mechanically requiring environments.
Silicon nitride displays exceptional fracture sturdiness, thermal shock resistance, and creep stability because of its distinct microstructure composed of elongated β-Si two N four grains that make it possible for fracture deflection and linking devices.
It preserves strength approximately 1400 ° C and has a fairly reduced thermal development coefficient (~ 3.2 × 10 ⁻⁶/ K), lessening thermal stress and anxieties throughout rapid temperature modifications.
On the other hand, silicon carbide uses exceptional firmness, thermal conductivity (approximately 120– 150 W/(m · K )for single crystals), oxidation resistance, and chemical inertness, making it suitable for rough and radiative warmth dissipation applications.
Its large bandgap (~ 3.3 eV for 4H-SiC) also provides exceptional electric insulation and radiation resistance, beneficial in nuclear and semiconductor contexts.
When combined into a composite, these products display corresponding habits: Si four N four enhances strength and damage resistance, while SiC enhances thermal management and put on resistance.
The resulting crossbreed ceramic attains an equilibrium unattainable by either phase alone, forming a high-performance architectural material tailored for severe solution problems.
1.2 Composite Style and Microstructural Design
The layout of Si six N FOUR– SiC composites involves accurate control over phase circulation, grain morphology, and interfacial bonding to maximize collaborating impacts.
Generally, SiC is presented as fine particulate support (varying from submicron to 1 µm) within a Si five N four matrix, although functionally graded or layered styles are also discovered for specialized applications.
During sintering– generally by means of gas-pressure sintering (GENERAL PRACTITIONER) or hot pressing– SiC fragments influence the nucleation and growth kinetics of β-Si two N four grains, commonly promoting finer and even more consistently oriented microstructures.
This refinement boosts mechanical homogeneity and decreases flaw dimension, contributing to better stamina and dependability.
Interfacial compatibility between the two stages is critical; due to the fact that both are covalent ceramics with comparable crystallographic balance and thermal expansion behavior, they form systematic or semi-coherent limits that resist debonding under load.
Ingredients such as yttria (Y TWO O TWO) and alumina (Al ₂ O FIVE) are made use of as sintering help to promote liquid-phase densification of Si two N ₄ without compromising the security of SiC.
Nevertheless, excessive additional phases can deteriorate high-temperature efficiency, so structure and handling should be maximized to decrease glazed grain limit films.
2. Handling Methods and Densification Difficulties
( Silicon nitride and silicon carbide composite ceramic)
2.1 Powder Prep Work and Shaping Methods
High-grade Si Five N ₄– SiC compounds begin with uniform mixing of ultrafine, high-purity powders using wet sphere milling, attrition milling, or ultrasonic diffusion in natural or aqueous media.
Achieving consistent diffusion is crucial to prevent jumble of SiC, which can serve as stress and anxiety concentrators and lower crack strength.
Binders and dispersants are contributed to support suspensions for forming strategies such as slip spreading, tape spreading, or injection molding, depending upon the preferred element geometry.
Eco-friendly bodies are after that carefully dried and debound to eliminate organics prior to sintering, a procedure calling for controlled heating prices to stay clear of breaking or deforming.
For near-net-shape production, additive strategies like binder jetting or stereolithography are emerging, enabling intricate geometries previously unachievable with typical ceramic processing.
These techniques need customized feedstocks with maximized rheology and eco-friendly strength, usually involving polymer-derived porcelains or photosensitive resins filled with composite powders.
2.2 Sintering Devices and Phase Security
Densification of Si Six N FOUR– SiC composites is testing as a result of the solid covalent bonding and restricted self-diffusion of nitrogen and carbon at sensible temperature levels.
Liquid-phase sintering using rare-earth or alkaline earth oxides (e.g., Y ₂ O SIX, MgO) lowers the eutectic temperature level and boosts mass transport via a short-term silicate melt.
Under gas pressure (generally 1– 10 MPa N TWO), this melt facilitates reformation, solution-precipitation, and final densification while subduing disintegration of Si three N ₄.
The existence of SiC impacts viscosity and wettability of the fluid stage, possibly altering grain development anisotropy and last appearance.
Post-sintering warmth treatments may be applied to take shape recurring amorphous stages at grain limits, improving high-temperature mechanical residential properties and oxidation resistance.
X-ray diffraction (XRD) and scanning electron microscopy (SEM) are consistently utilized to validate stage purity, lack of undesirable additional stages (e.g., Si ₂ N TWO O), and uniform microstructure.
3. Mechanical and Thermal Performance Under Lots
3.1 Toughness, Toughness, and Fatigue Resistance
Si Six N FOUR– SiC composites demonstrate premium mechanical performance compared to monolithic porcelains, with flexural strengths exceeding 800 MPa and fracture strength values reaching 7– 9 MPa · m ¹/ TWO.
The reinforcing effect of SiC bits impedes misplacement activity and crack proliferation, while the extended Si ₃ N four grains continue to supply toughening with pull-out and connecting mechanisms.
This dual-toughening approach causes a material extremely resistant to effect, thermal biking, and mechanical fatigue– vital for revolving elements and structural elements in aerospace and power systems.
Creep resistance remains excellent as much as 1300 ° C, attributed to the stability of the covalent network and minimized grain boundary moving when amorphous stages are reduced.
Firmness values commonly vary from 16 to 19 Grade point average, using outstanding wear and erosion resistance in abrasive atmospheres such as sand-laden circulations or moving get in touches with.
3.2 Thermal Management and Ecological Toughness
The addition of SiC considerably raises the thermal conductivity of the composite, often doubling that of pure Si ₃ N FOUR (which varies from 15– 30 W/(m · K) )to 40– 60 W/(m · K) depending on SiC material and microstructure.
This improved warm transfer ability allows for much more effective thermal monitoring in components revealed to extreme localized heating, such as burning liners or plasma-facing parts.
The composite preserves dimensional stability under high thermal gradients, resisting spallation and cracking as a result of matched thermal expansion and high thermal shock specification (R-value).
Oxidation resistance is one more essential benefit; SiC creates a safety silica (SiO ₂) layer upon direct exposure to oxygen at elevated temperature levels, which further compresses and secures surface issues.
This passive layer secures both SiC and Si Six N ₄ (which also oxidizes to SiO two and N ₂), ensuring long-lasting sturdiness in air, heavy steam, or combustion ambiences.
4. Applications and Future Technical Trajectories
4.1 Aerospace, Energy, and Industrial Systems
Si Four N FOUR– SiC composites are progressively released in next-generation gas wind turbines, where they allow greater running temperature levels, boosted fuel efficiency, and minimized cooling demands.
Parts such as generator blades, combustor linings, and nozzle overview vanes benefit from the material’s capability to hold up against thermal biking and mechanical loading without significant destruction.
In atomic power plants, particularly high-temperature gas-cooled activators (HTGRs), these composites act as gas cladding or architectural assistances due to their neutron irradiation tolerance and fission item retention ability.
In commercial settings, they are made use of in molten steel handling, kiln furnishings, and wear-resistant nozzles and bearings, where conventional metals would fail prematurely.
Their lightweight nature (density ~ 3.2 g/cm THREE) likewise makes them eye-catching for aerospace propulsion and hypersonic car elements subject to aerothermal home heating.
4.2 Advanced Manufacturing and Multifunctional Integration
Emerging research study concentrates on establishing functionally rated Si five N FOUR– SiC frameworks, where make-up varies spatially to optimize thermal, mechanical, or electromagnetic residential or commercial properties across a single component.
Hybrid systems integrating CMC (ceramic matrix composite) architectures with fiber support (e.g., SiC_f/ SiC– Si Three N ₄) press the boundaries of damages resistance and strain-to-failure.
Additive production of these compounds enables topology-optimized warmth exchangers, microreactors, and regenerative air conditioning channels with internal latticework structures unreachable through machining.
In addition, their intrinsic dielectric residential or commercial properties and thermal stability make them candidates for radar-transparent radomes and antenna home windows in high-speed systems.
As demands expand for products that do reliably under extreme thermomechanical lots, Si five N FOUR– SiC composites represent a critical improvement in ceramic design, merging robustness with performance in a single, sustainable system.
To conclude, silicon nitride– silicon carbide composite porcelains exhibit the power of materials-by-design, leveraging the staminas of 2 sophisticated porcelains to produce a crossbreed system with the ability of prospering in the most severe operational environments.
Their continued advancement will play a main role ahead of time tidy energy, aerospace, and industrial technologies in the 21st century.
