1. Material Principles and Microstructural Characteristics
1.1 Composition and Crystallographic Residence of Al Two O TWO
(Alumina Ceramic Balls， Alumina Ceramic Balls)

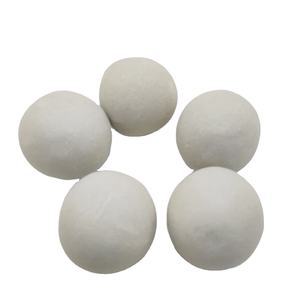

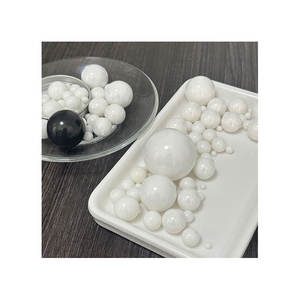

Alumina ceramic spheres are round elements fabricated from light weight aluminum oxide (Al two O FOUR), a totally oxidized, polycrystalline ceramic that displays outstanding firmness, chemical inertness, and thermal security.
The key crystalline stage in high-performance alumina spheres is α-alumina, which adopts a corundum-type hexagonal close-packed framework where light weight aluminum ions occupy two-thirds of the octahedral interstices within an oxygen anion latticework, conferring high lattice energy and resistance to phase change.
Industrial-grade alumina balls commonly consist of 85% to 99.9% Al Two O FOUR, with purity directly affecting mechanical stamina, wear resistance, and corrosion efficiency.
High-purity grades (≥ 95% Al Two O FOUR) are sintered to near-theoretical density (> 99%) using sophisticated strategies such as pressureless sintering or warm isostatic pressing, minimizing porosity and intergranular defects that can act as anxiety concentrators.
The resulting microstructure contains fine, equiaxed grains consistently dispersed throughout the quantity, with grain dimensions normally varying from 1 to 5 micrometers, maximized to balance strength and hardness.
1.2 Mechanical and Physical Residential Or Commercial Property Account
Alumina ceramic rounds are renowned for their severe firmness– measured at about 1800– 2000 HV on the Vickers scale– going beyond most steels and matching tungsten carbide, making them perfect for wear-intensive atmospheres.
Their high compressive toughness (as much as 2500 MPa) makes sure dimensional security under tons, while reduced flexible contortion boosts accuracy in rolling and grinding applications.
Regardless of their brittleness about metals, alumina spheres display excellent fracture sturdiness for ceramics, particularly when grain growth is controlled during sintering.
They preserve architectural integrity across a broad temperature range, from cryogenic conditions approximately 1600 ° C in oxidizing environments, far going beyond the thermal limits of polymer or steel equivalents.
Additionally, their reduced thermal expansion coefficient (~ 8 × 10 ⁻⁶/ K) minimizes thermal shock susceptibility, enabling use in quickly changing thermal environments such as kilns and heat exchangers.
2. Production Processes and Quality Assurance
()
2.1 Shaping and Sintering Methods
The manufacturing of alumina ceramic spheres begins with high-purity alumina powder, often originated from calcined bauxite or chemically precipitated hydrates, which is milled to attain submicron bit size and narrow dimension distribution.
Powders are after that formed into round eco-friendly bodies making use of techniques such as extrusion-spheronization, spray drying, or ball developing in rotating frying pans, depending on the wanted dimension and batch range.
After shaping, green rounds undertake a binder exhaustion stage followed by high-temperature sintering, normally between 1500 ° C and 1700 ° C, where diffusion mechanisms drive densification and grain coarsening.
Accurate control of sintering ambience (air or managed oxygen partial pressure), heating rate, and dwell time is essential to attaining consistent shrinking, spherical geometry, and very little interior issues.
For ultra-high-performance applications, post-sintering therapies such as hot isostatic pressing (HIP) may be put on remove recurring microporosity and further enhance mechanical dependability.
2.2 Precision Finishing and Metrological Verification
Adhering to sintering, alumina rounds are ground and polished utilizing diamond-impregnated media to achieve limited dimensional tolerances and surface finishes similar to bearing-grade steel spheres.
Surface roughness is generally lowered to less than 0.05 μm Ra, decreasing friction and use in dynamic contact scenarios.
Vital top quality specifications include sphericity (deviation from ideal satiation), size variant, surface integrity, and density harmony, all of which are gauged making use of optical interferometry, coordinate gauging machines (CMM), and laser profilometry.
International requirements such as ISO 3290 and ANSI/ABMA define resistance qualities for ceramic spheres utilized in bearings, ensuring interchangeability and performance consistency throughout producers.
Non-destructive screening techniques like ultrasonic assessment or X-ray microtomography are employed to detect inner fractures, voids, or incorporations that might compromise lasting reliability.
3. Useful Benefits Over Metal and Polymer Counterparts
3.1 Chemical and Rust Resistance in Harsh Environments
Among the most considerable benefits of alumina ceramic spheres is their impressive resistance to chemical assault.
They continue to be inert in the presence of solid acids (except hydrofluoric acid), alkalis, natural solvents, and saline remedies, making them suitable for use in chemical processing, pharmaceutical manufacturing, and aquatic applications where steel elements would wear away quickly.
This inertness avoids contamination of sensitive media, an important factor in food processing, semiconductor construction, and biomedical devices.
Unlike steel rounds, alumina does not create rust or metal ions, ensuring process purity and reducing maintenance regularity.
Their non-magnetic nature even more expands applicability to MRI-compatible tools and digital assembly lines where magnetic interference need to be stayed clear of.
3.2 Wear Resistance and Long Service Life
In rough or high-cycle settings, alumina ceramic spheres display wear rates orders of magnitude lower than steel or polymer options.
This exceptional resilience translates right into extended service periods, lowered downtime, and lower total price of possession despite greater preliminary purchase expenses.
They are widely made use of as grinding media in round mills for pigment dispersion, mineral processing, and nanomaterial synthesis, where their inertness stops contamination and their firmness ensures effective bit dimension decrease.
In mechanical seals and valve elements, alumina rounds maintain limited tolerances over millions of cycles, resisting disintegration from particulate-laden liquids.
4. Industrial and Emerging Applications
4.1 Bearings, Valves, and Fluid Handling Systems
Alumina ceramic balls are integral to hybrid round bearings, where they are paired with steel or silicon nitride races to combine the low density and rust resistance of porcelains with the toughness of steels.
Their low density (~ 3.9 g/cm THREE, about 40% lighter than steel) reduces centrifugal loading at high rotational rates, allowing much faster operation with lower warm generation and improved energy efficiency.
Such bearings are made use of in high-speed pins, dental handpieces, and aerospace systems where reliability under extreme conditions is vital.
In liquid control applications, alumina spheres function as check valve elements in pumps and metering gadgets, especially for aggressive chemicals, high-purity water, or ultra-high vacuum systems.
Their smooth surface and dimensional stability make certain repeatable sealing efficiency and resistance to galling or taking.
4.2 Biomedical, Power, and Advanced Innovation Utilizes
Past standard industrial duties, alumina ceramic rounds are finding usage in biomedical implants and diagnostic devices as a result of their biocompatibility and radiolucency.
They are utilized in synthetic joints and dental prosthetics where wear debris must be lessened to avoid inflammatory actions.
In energy systems, they operate as inert tracers in tank characterization or as heat-stable parts in concentrated solar energy and gas cell assemblies.
Research is likewise exploring functionalized alumina rounds for catalytic assistance, sensing unit aspects, and accuracy calibration requirements in metrology.
In summary, alumina ceramic rounds exemplify how sophisticated ceramics link the gap in between structural toughness and useful accuracy.
Their one-of-a-kind mix of hardness, chemical inertness, thermal security, and dimensional accuracy makes them crucial in demanding engineering systems across varied markets.
As producing techniques remain to boost, their performance and application range are expected to broaden additionally into next-generation innovations.
