1. Product Fundamentals and Microstructural Layout
1.1 Composition and Crystallographic Security of Alumina
(Alumina Ceramic Nozzles)
Alumina (Al Two O ₃), specifically in its alpha stage, is a completely oxidized ceramic with a corundum-type hexagonal close-packed framework, using extraordinary thermal stability, chemical inertness, and mechanical toughness at elevated temperatures.
High-purity alumina (usually 95– 99.9% Al Two O TWO) is liked for nozzle applications because of its very little pollutant material, which decreases grain border weakening and enhances resistance to thermal and chemical destruction.
The microstructure, including penalty, equiaxed grains, is engineered during sintering to reduce porosity and take full advantage of density, straight affecting the nozzle’s erosion resistance and architectural honesty under high-velocity fluid circulation.
Additives such as MgO are usually introduced in trace total up to hinder irregular grain development during sintering, making sure an uniform microstructure that sustains lasting integrity.
1.2 Mechanical and Thermal Characteristics Relevant to Nozzle Efficiency
Alumina ceramics display a Vickers solidity exceeding 1800 HV, making them highly resistant to abrasive wear from particulate-laden fluids, an essential quality in applications such as sandblasting and abrasive waterjet cutting.
With a flexural stamina of 300– 500 MPa and a compressive strength over 2 GPa, alumina nozzles keep dimensional stability under high-pressure operation, typically varying from 100 to 400 MPa in commercial systems.
Thermally, alumina keeps its mechanical residential or commercial properties as much as 1600 ° C, with a low thermal expansion coefficient (~ 8 × 10 ⁻⁶/ K) that supplies outstanding resistance to thermal shock– crucial when exposed to rapid temperature level variations during start-up or closure cycles.
Its thermal conductivity (~ 30 W/m · K) suffices to dissipate localized warm without inducing thermal slopes that could cause splitting, balancing insulation and heat monitoring requirements.
2. Manufacturing Processes and Geometric Precision
2.1 Forming and Sintering Strategies for Nozzle Fabrication
The manufacturing of alumina ceramic nozzles starts with high-purity alumina powder, which is processed into a green body utilizing approaches such as cold isostatic pushing (CIP), injection molding, or extrusion, depending on the wanted geometry and set dimension.

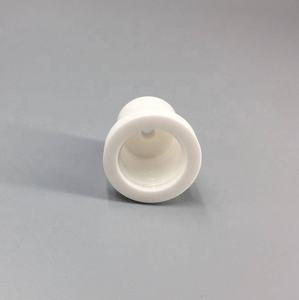

( Alumina Ceramic Nozzles)
Cold isostatic pushing applies consistent stress from all instructions, producing a homogeneous density circulation vital for decreasing defects during sintering.
Injection molding is utilized for complicated nozzle forms with internal tapers and great orifices, permitting high dimensional precision and reproducibility in automation.
After shaping, the green compacts go through a two-stage thermal therapy: debinding to get rid of organic binders and sintering at temperature levels between 1500 ° C and 1650 ° C to attain near-theoretical density via solid-state diffusion.
Specific control of sintering environment and heating/cooling prices is necessary to avoid bending, cracking, or grain coarsening that might endanger nozzle performance.
2.2 Machining, Polishing, and Quality Assurance
Post-sintering, alumina nozzles often call for accuracy machining to achieve tight tolerances, specifically in the orifice region where circulation dynamics are most conscious surface area finish and geometry.
Ruby grinding and splashing are made use of to fine-tune internal and outside surface areas, achieving surface area roughness worths below 0.1 µm, which minimizes circulation resistance and stops bit accumulation.
The orifice, typically varying from 0.3 to 3.0 mm in size, should be devoid of micro-cracks and chamfers to guarantee laminar flow and regular spray patterns.
Non-destructive screening methods such as optical microscopy, X-ray examination, and stress biking tests are employed to verify architectural stability and performance consistency before release.
Customized geometries, including convergent-divergent (de Laval) profiles for supersonic circulation or multi-hole varieties for follower spray patterns, are increasingly fabricated making use of innovative tooling and computer-aided style (CAD)-driven manufacturing.
3. Useful Benefits Over Different Nozzle Products
3.1 Superior Erosion and Rust Resistance
Compared to metallic (e.g., tungsten carbide, stainless-steel) or polymer nozzles, alumina displays far greater resistance to unpleasant wear, specifically in environments including silica sand, garnet, or various other tough abrasives utilized in surface area prep work and cutting.
Steel nozzles degrade rapidly as a result of micro-fracturing and plastic contortion, needing regular substitute, whereas alumina nozzles can last 3– 5 times longer, substantially reducing downtime and operational expenses.
Additionally, alumina is inert to most acids, antacid, and solvents, making it suitable for chemical splashing, etching, and cleaning procedures where metallic components would certainly wear away or pollute the fluid.
This chemical stability is especially useful in semiconductor production, pharmaceutical processing, and food-grade applications needing high pureness.
3.2 Thermal and Electrical Insulation Residence
Alumina’s high electrical resistivity (> 10 ¹⁴ Ω · centimeters) makes it suitable for use in electrostatic spray finish systems, where it avoids fee leakage and makes sure consistent paint atomization.
Its thermal insulation ability permits risk-free procedure in high-temperature splashing atmospheres, such as flame spraying or thermal cleansing, without warm transfer to bordering elements.
Unlike metals, alumina does not militarize unwanted chemical reactions in responsive liquid streams, preserving the stability of delicate formulations.
4. Industrial Applications and Technical Influence
4.1 Roles in Abrasive Jet Machining and Surface Therapy
Alumina ceramic nozzles are indispensable in abrasive blowing up systems for rust removal, paint removing, and surface area texturing in automobile, aerospace, and building and construction markets.
Their ability to preserve a constant orifice size over extended usage guarantees uniform abrasive rate and effect angle, directly affecting surface area finish high quality and procedure repeatability.
In unpleasant waterjet cutting, alumina focusing tubes lead the high-pressure water-abrasive mixture, holding up against abrasive pressures that would swiftly weaken softer products.
4.2 Usage in Additive Production, Spray Coating, and Fluid Control
In thermal spray systems, such as plasma and fire spraying, alumina nozzles direct high-temperature gas circulations and liquified particles onto substrates, benefiting from their thermal shock resistance and dimensional stability.
They are likewise utilized in accuracy spray nozzles for farming chemicals, inkjet systems, and gas atomization, where wear resistance ensures long-lasting application precision.
In 3D printing, particularly in binder jetting and product extrusion, alumina nozzles provide great powders or viscous pastes with very little blocking or use.
Arising applications include microfluidic systems and lab-on-a-chip devices, where miniaturized alumina components provide toughness and biocompatibility.
In summary, alumina ceramic nozzles represent a crucial junction of products scientific research and industrial design.
Their phenomenal mix of hardness, thermal stability, and chemical resistance allows reputable performance in several of the most demanding liquid handling atmospheres.
As industrial procedures push towards greater stress, finer tolerances, and much longer service periods, alumina ceramics continue to establish the criterion for durable, high-precision flow control parts.
