1. Chemical and Structural Basics of Boron Carbide
1.1 Crystallography and Stoichiometric Variability

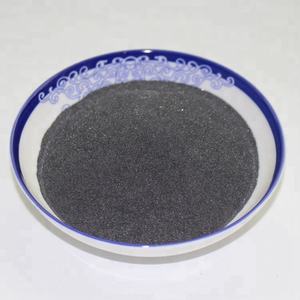

(Boron Carbide Podwer)
Boron carbide (B FOUR C) is a non-metallic ceramic substance renowned for its remarkable hardness, thermal stability, and neutron absorption capacity, positioning it amongst the hardest recognized products– surpassed only by cubic boron nitride and diamond.
Its crystal framework is based on a rhombohedral latticework composed of 12-atom icosahedra (largely B ₁₂ or B ₁₁ C) adjoined by direct C-B-C or C-B-B chains, creating a three-dimensional covalent network that conveys extraordinary mechanical stamina.
Unlike several ceramics with fixed stoichiometry, boron carbide shows a wide variety of compositional adaptability, commonly varying from B FOUR C to B ₁₀. TWO C, because of the alternative of carbon atoms within the icosahedra and architectural chains.
This variability influences crucial residential or commercial properties such as firmness, electrical conductivity, and thermal neutron capture cross-section, enabling residential or commercial property adjusting based upon synthesis problems and desired application.
The existence of inherent problems and disorder in the atomic setup also contributes to its special mechanical behavior, including a phenomenon called “amorphization under tension” at high pressures, which can restrict performance in extreme impact situations.
1.2 Synthesis and Powder Morphology Control
Boron carbide powder is primarily created via high-temperature carbothermal decrease of boron oxide (B TWO O THREE) with carbon sources such as petroleum coke or graphite in electrical arc heaters at temperatures in between 1800 ° C and 2300 ° C.
The response continues as: B TWO O SIX + 7C → 2B FOUR C + 6CO, generating crude crystalline powder that calls for succeeding milling and filtration to accomplish penalty, submicron or nanoscale fragments ideal for advanced applications.
Different methods such as laser-assisted chemical vapor deposition (CVD), sol-gel handling, and mechanochemical synthesis deal paths to greater purity and regulated fragment dimension circulation, though they are typically restricted by scalability and expense.
Powder characteristics– consisting of particle size, shape, agglomeration state, and surface chemistry– are crucial specifications that affect sinterability, packing density, and final element performance.
For example, nanoscale boron carbide powders exhibit enhanced sintering kinetics due to high surface area energy, enabling densification at lower temperature levels, however are susceptible to oxidation and need protective ambiences during handling and handling.
Surface area functionalization and layer with carbon or silicon-based layers are increasingly utilized to improve dispersibility and hinder grain growth throughout loan consolidation.
( Boron Carbide Podwer)
2. Mechanical Qualities and Ballistic Performance Mechanisms
2.1 Solidity, Crack Durability, and Use Resistance
Boron carbide powder is the precursor to among one of the most reliable light-weight shield materials offered, owing to its Vickers firmness of around 30– 35 Grade point average, which enables it to deteriorate and blunt inbound projectiles such as bullets and shrapnel.
When sintered right into thick ceramic tiles or integrated into composite armor systems, boron carbide outperforms steel and alumina on a weight-for-weight basis, making it ideal for workers protection, car armor, and aerospace protecting.
Nevertheless, regardless of its high hardness, boron carbide has reasonably low crack sturdiness (2.5– 3.5 MPa · m ONE / TWO), providing it vulnerable to splitting under local effect or duplicated loading.
This brittleness is aggravated at high strain rates, where dynamic failure systems such as shear banding and stress-induced amorphization can lead to devastating loss of structural honesty.
Recurring study focuses on microstructural design– such as introducing second stages (e.g., silicon carbide or carbon nanotubes), developing functionally rated composites, or making ordered styles– to minimize these restrictions.
2.2 Ballistic Power Dissipation and Multi-Hit Capacity
In individual and vehicular armor systems, boron carbide tiles are normally backed by fiber-reinforced polymer compounds (e.g., Kevlar or UHMWPE) that take in residual kinetic energy and contain fragmentation.
Upon effect, the ceramic layer fractures in a regulated way, dissipating power through systems including particle fragmentation, intergranular splitting, and stage transformation.
The fine grain framework stemmed from high-purity, nanoscale boron carbide powder enhances these power absorption procedures by enhancing the density of grain borders that impede fracture proliferation.
Recent innovations in powder processing have actually brought about the advancement of boron carbide-based ceramic-metal compounds (cermets) and nano-laminated frameworks that improve multi-hit resistance– an important requirement for military and police applications.
These crafted materials keep protective efficiency even after preliminary impact, addressing a key limitation of monolithic ceramic armor.
3. Neutron Absorption and Nuclear Engineering Applications
3.1 Communication with Thermal and Rapid Neutrons
Past mechanical applications, boron carbide powder plays a vital duty in nuclear technology due to the high neutron absorption cross-section of the ¹⁰ B isotope (3837 barns for thermal neutrons).
When integrated into control poles, shielding materials, or neutron detectors, boron carbide properly regulates fission reactions by catching neutrons and going through the ¹⁰ B( n, α) seven Li nuclear reaction, creating alpha fragments and lithium ions that are conveniently consisted of.
This residential or commercial property makes it important in pressurized water activators (PWRs), boiling water activators (BWRs), and research reactors, where exact neutron change control is crucial for risk-free procedure.
The powder is often made into pellets, coverings, or spread within steel or ceramic matrices to create composite absorbers with customized thermal and mechanical homes.
3.2 Security Under Irradiation and Long-Term Performance
A critical benefit of boron carbide in nuclear atmospheres is its high thermal security and radiation resistance approximately temperatures exceeding 1000 ° C.
Nevertheless, prolonged neutron irradiation can lead to helium gas buildup from the (n, α) response, triggering swelling, microcracking, and destruction of mechanical stability– a sensation known as “helium embrittlement.”
To alleviate this, researchers are creating doped boron carbide formulations (e.g., with silicon or titanium) and composite layouts that accommodate gas launch and preserve dimensional stability over prolonged service life.
Additionally, isotopic enrichment of ¹⁰ B boosts neutron capture effectiveness while lowering the complete material volume called for, boosting activator style adaptability.
4. Emerging and Advanced Technological Integrations
4.1 Additive Manufacturing and Functionally Graded Parts
Current development in ceramic additive manufacturing has actually enabled the 3D printing of complicated boron carbide parts using strategies such as binder jetting and stereolithography.
In these processes, fine boron carbide powder is precisely bound layer by layer, complied with by debinding and high-temperature sintering to accomplish near-full thickness.
This capacity enables the fabrication of customized neutron securing geometries, impact-resistant lattice frameworks, and multi-material systems where boron carbide is incorporated with steels or polymers in functionally rated styles.
Such designs maximize efficiency by incorporating firmness, durability, and weight effectiveness in a single component, opening up new frontiers in defense, aerospace, and nuclear engineering.
4.2 High-Temperature and Wear-Resistant Commercial Applications
Past defense and nuclear industries, boron carbide powder is used in abrasive waterjet reducing nozzles, sandblasting liners, and wear-resistant coverings as a result of its extreme solidity and chemical inertness.
It outshines tungsten carbide and alumina in erosive atmospheres, especially when revealed to silica sand or various other difficult particulates.
In metallurgy, it works as a wear-resistant liner for hoppers, chutes, and pumps managing unpleasant slurries.
Its low thickness (~ 2.52 g/cm FOUR) more boosts its allure in mobile and weight-sensitive commercial equipment.
As powder quality boosts and processing technologies development, boron carbide is poised to increase right into next-generation applications consisting of thermoelectric products, semiconductor neutron detectors, and space-based radiation protecting.
Finally, boron carbide powder represents a keystone product in extreme-environment engineering, combining ultra-high solidity, neutron absorption, and thermal strength in a solitary, flexible ceramic system.
Its duty in safeguarding lives, making it possible for atomic energy, and progressing commercial effectiveness highlights its strategic relevance in modern-day innovation.
With proceeded advancement in powder synthesis, microstructural design, and manufacturing assimilation, boron carbide will stay at the center of advanced materials development for decades ahead.
